Bulk Enrichment Analysis

Bulk RNA-seq yields many molecular readouts that are hard to interpret by themselves. One common approach to summarize this data is to compute enrichment scores using predefined gene sets based on prior biological knowledge.

This notebook demonstrates the use of decoupler to infer transcription factor (TF) and pathway enrichment scores from a bulk RNA-seq dataset of a human cell line [YLG+20].

The dataset includes six samples of hepatic stellate cells (HSCs), three of which were activated with the cytokine Transforming Growth Factor beta (TGF-β). It is publicly available at GEO (GSE151251).

Loading Packages

import numpy as np
import scanpy as sc
import decoupler as dc

sc.set_figure_params(figsize=(3, 3), frameon=False)

Loading The Dataset

adata = dc.ds.hsctgfb()
adata

AnnData object with n_obs × n_vars = 6 × 58674
    obs: 'condition', 'sample_id'

The obtained anndata.AnnData consist of raw integer transcript counts for six different samples (three controls, three treatments) with measurements for ~60k genes.

We can inspect the sample metadata stored in anndata.AnnData.obs.

adata.obs

	condition	sample_id
25_HSCs-Ctrl1	control	25
26_HSCs-Ctrl2	control	26
27_HSCs-Ctrl3	control	27
31_HSCs-TGFb1	treatment	31
32_HSCs-TGFb2	treatment	32
33_HSCs-TGFb3	treatment	33

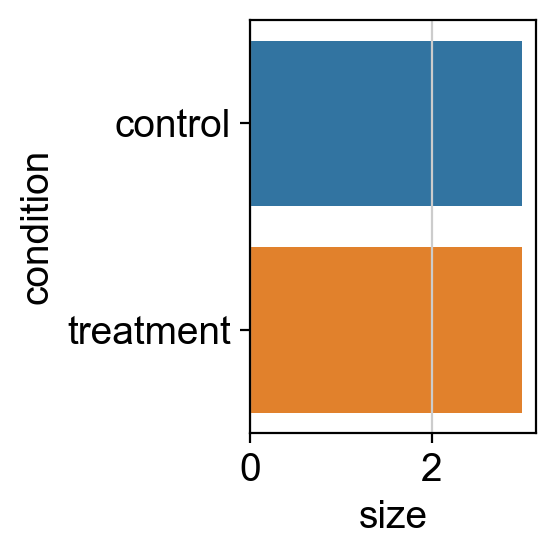

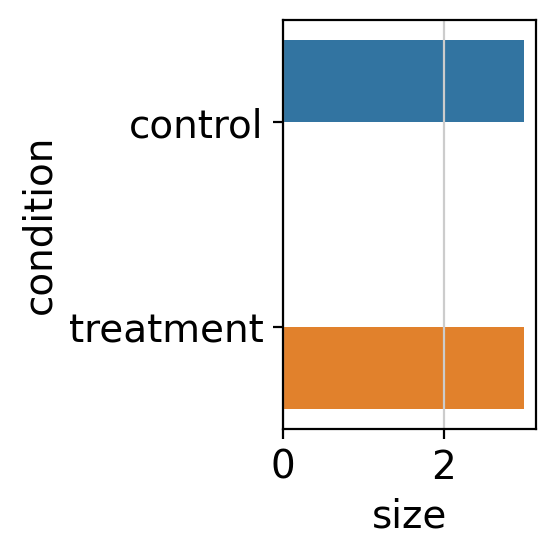

And visualized.

dc.pl.obsbar(adata=adata, y="condition", hue="condition", figsize=(3, 3))

Although this plot is simple in the current example, it can be useful in more complex experimental designs.

Preprocessing

Quality Control

Before proceeding, we need to ensure that our data meets basic quality control standards. In transcriptomics, some genes may be poorly profiled and should be excluded from analysis.

To filter genes, we follow the approach used in the filterByExpr function from edgeR [RMS09]. This method retains genes that meet two criteria:

1. A minimum total read count across all samples (min_total_count)

2. A minimum read count in a minimum number of samples (min_count)

We can visualize how many genes are retained under different filtering thresholds.

Feel free to adjust the parameters of decoupler.pl.filter_by_expr to explore how they affect gene retention.

dc.pl.filter_by_expr(
    adata=adata,
    group="condition",
    min_count=10,
    min_total_count=15,
    large_n=10,
    min_prop=0.7,
)

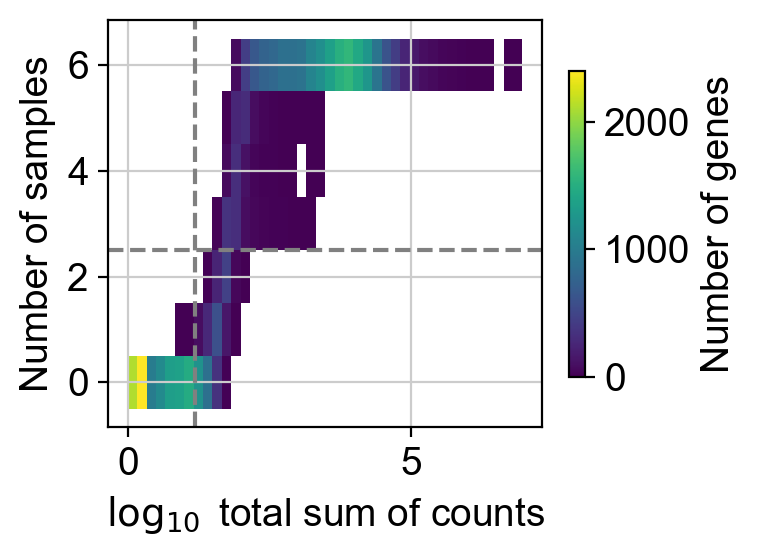

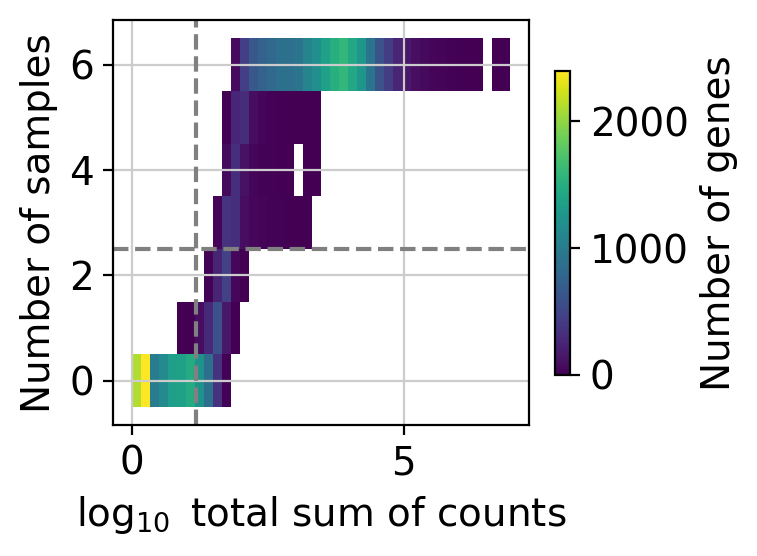

Here, we visualize the distribution of genes by their total count across all samples and the number of samples in which they are expressed. The dashed lines represent the current filtering thresholds, only genes in the upper-right corner will be retained.

While filtering thresholds are somewhat arbitrary, a common strategy is to look for bimodal distributions and set thresholds that separate low-expression (potentially noisy) genes from those with more robust expression.

In this example, the default settings strike a balance by retaining a substantial number of genes while filtering out likely noise.

Note

Changing the value of min_count will significantly affect the distribution of the “Number of samples” but will not directly change its threshold. To adjust this threshold, either to lower or raise it, you’ll need to modify the group, large_n, and min_prop parameters.

Note

Filtering thresholds can vary greatly between datasets, so manual assessment is important.

Once you’re satisfied with the threshold parameters, you can proceed with the actual filtering with the function decoupler.pp.filter_by_expr.

dc.pp.filter_by_expr(
    adata=adata,
    group="condition",
    min_count=10,
    min_total_count=15,
    large_n=10,
    min_prop=0.7,
)

Variability Exploration

Before performing any test between groups, it is a good practice to explore the variability of the omics profiles.

This involves some basic preprocessing followed by principal component analysis (PCA).

# Store raw counts in layers
adata.layers["counts"] = adata.X.copy()

# Normalize, scale and compute pca
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
sc.pp.scale(adata, max_value=10)
sc.tl.pca(adata)

# Return raw counts to X
dc.pp.swap_layer(adata=adata, key="counts", inplace=True)

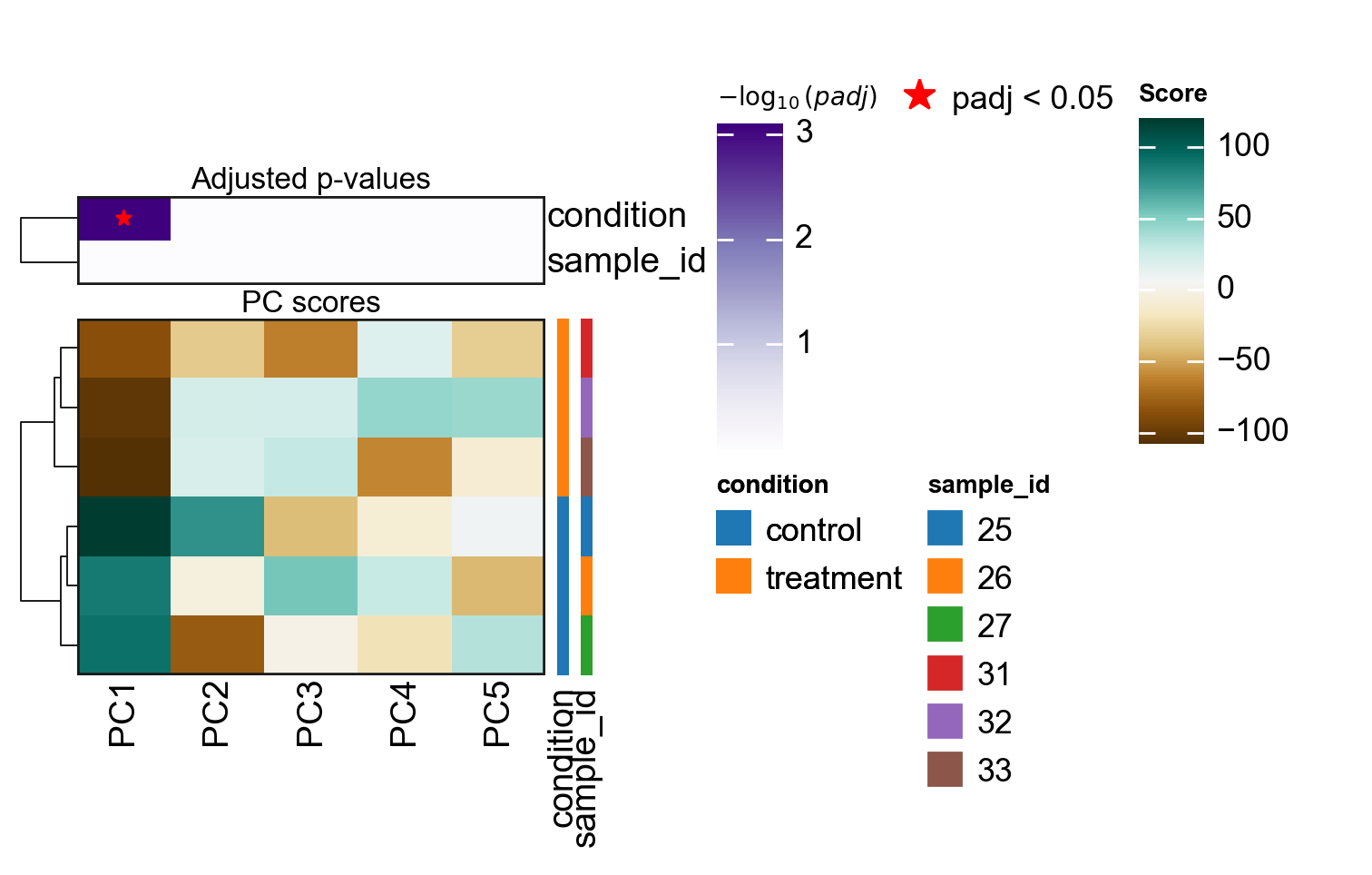

After computing the PCs, associations or correlations between each inferred PC and the variables in the metadata can be tested, depending on whether the variables are categorical or continuous.

This type of analysis is applicable to any dimensionality reduction method, such as factors derived from non-negative matrix factorization.

dc.tl.rankby_obsm(adata, key="X_pca")

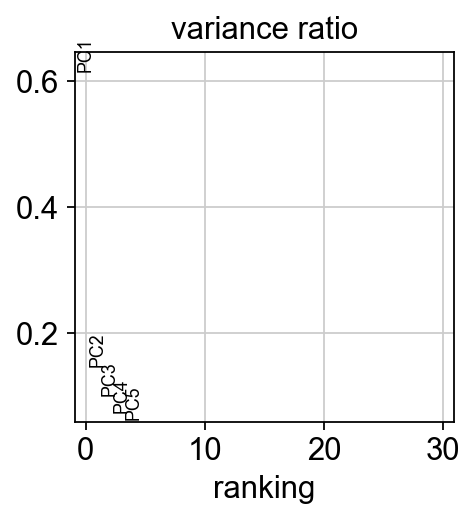

The importance of each principal component (based on its explained variance ratio) and its associations with metadata variables can then be visualized.

sc.pl.pca_variance_ratio(adata)

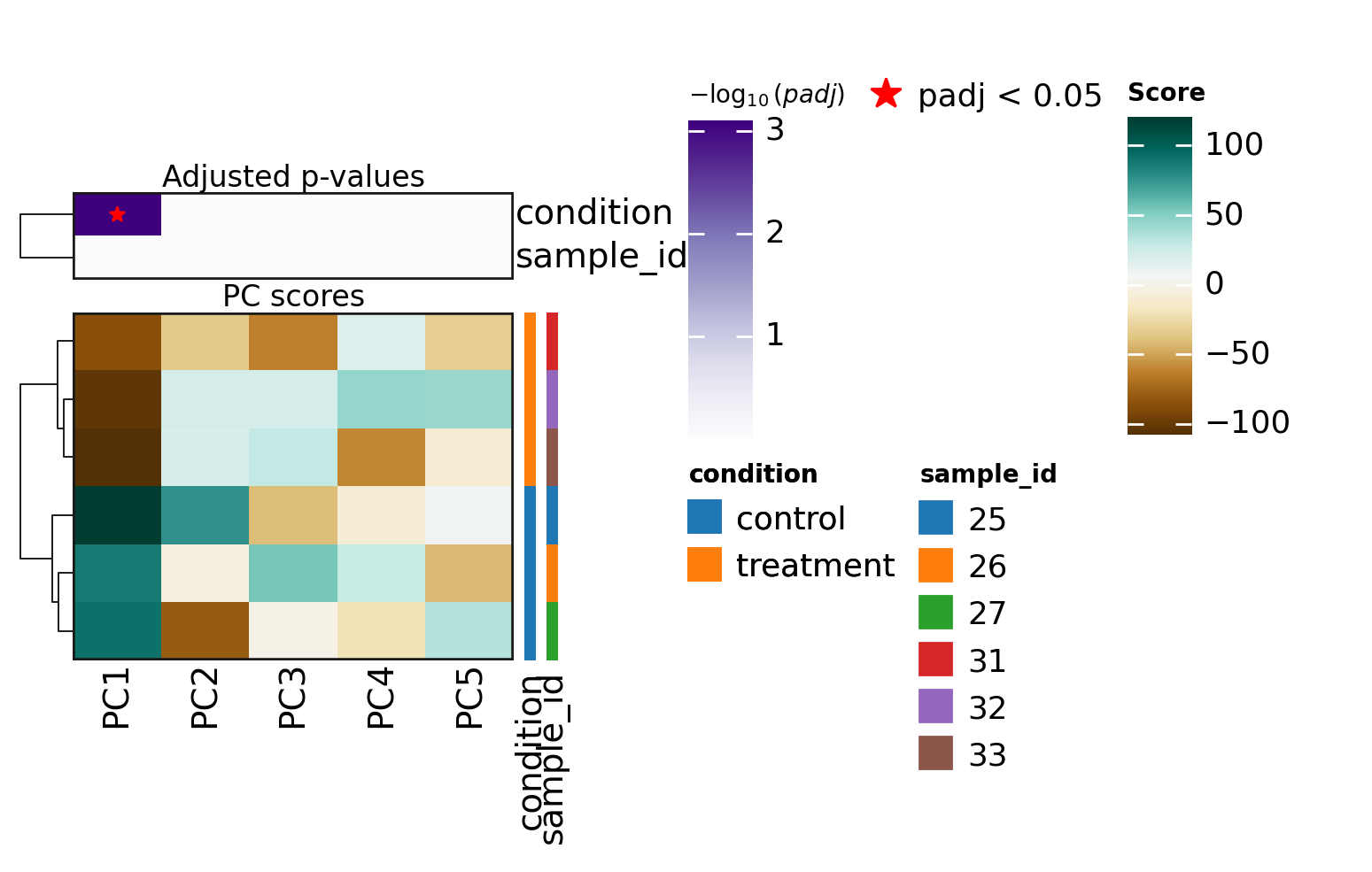

dc.pl.obsm(adata=adata, return_fig=True, nvar=5, titles=["PC scores", "Adjusted p-values"], figsize=(6, 3))

In this dataset, PC1 appears to explain the largest proportion of variance and is associated with the metadata variable “condition”, which is a good indication that the experiment worked.

Metadata variables associated with PCs that capture a substantial amount of variance are important and should be accounted for as relevant covariates in downstream differential expression analysis when possible.

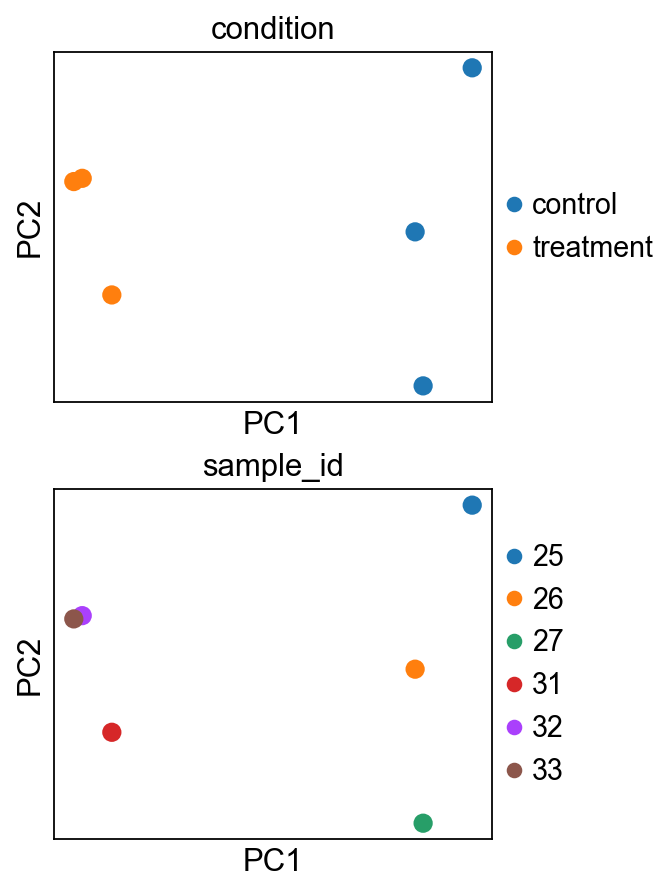

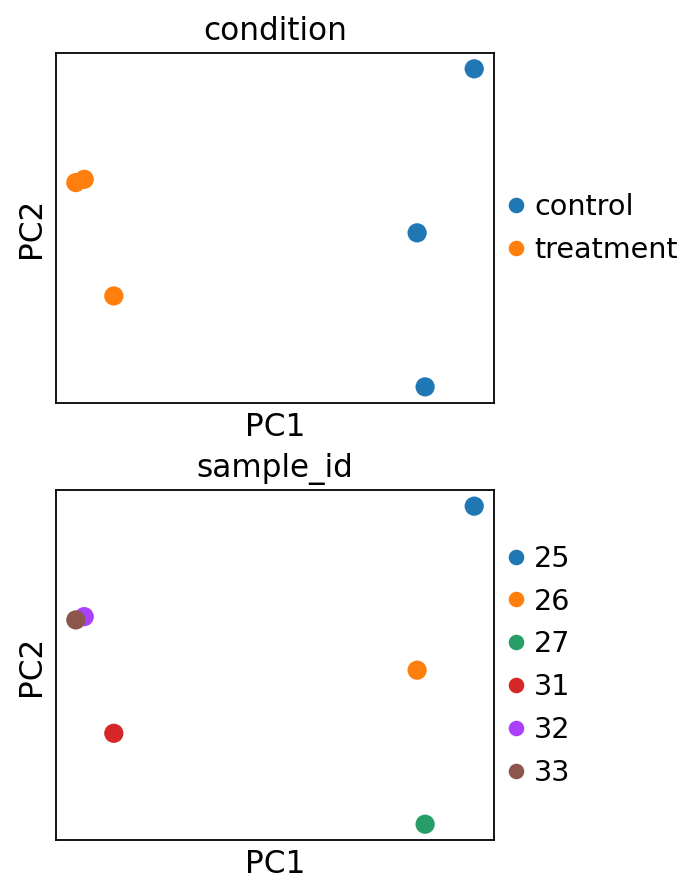

The principal components can also be directly visualized, colored by these metadata variables.

sc.pl.pca(
    adata,
    color=["condition", "sample_id"],
    ncols=1,
    size=300,
    frameon=True,
)

Differential Expression Analysis

To identify the genes that change most between treatment and control, we perform differential expression analysis (DEA). In this example, we use a simple experimental design that compares gene expression in treated cells versus controls.

We will use the Python implementation of the DESeq2 framework [MTCA23], though other tools like limma [RPW+15] or edgeR [RMS09] could also be used. For a deeper understanding of how pyDESeq2 works, refer to its official documentation.

Note that more complex experimental designs can be accommodated by adding additional factors to the design_factors argument.

# Import DESeq2
from pydeseq2.dds import DeseqDataSet, DefaultInference
from pydeseq2.ds import DeseqStats

# Build DESeq2 object
inference = DefaultInference(n_cpus=8)
dds = DeseqDataSet(
    adata=adata,
    design_factors="condition",
    refit_cooks=True,
    inference=inference,
)

# Compute LFCs
dds.deseq2()

# Extract contrast between conditions
stat_res = DeseqStats(dds, contrast=["condition", "treatment", "control"], inference=inference)

# Compute Wald test
stat_res.summary()

Log2 fold change & Wald test p-value: condition treatment vs control
                  baseMean  log2FoldChange     lfcSE       stat  \
RP11-347I19.8    88.877997       -0.207128  0.252585  -0.820033
TMEM170B        103.807801       -0.276961  0.210597  -1.315124
RP11-91P24.6    185.514929       -0.305849  0.180945  -1.690287
SLC33A1        2559.269047        0.595912  0.085219   6.992732
SNORA61          66.168502        0.746768  0.266506   2.802073
...                    ...             ...       ...        ...
RP11-75I2.3     771.828248        3.812419  0.128093  29.762958
SLC25A24       3525.523888        0.651017  0.087564   7.434777
BTN2A2          674.018191       -0.107905  0.106204  -1.016023
RP11-101E3.5    194.084339        0.092515  0.181979   0.508385
RP11-91I8.3      10.761886       -3.804540  0.920285  -4.134090

                      pvalue           padj
RP11-347I19.8   4.121975e-01   5.540839e-01
TMEM170B        1.884683e-01   3.054254e-01
RP11-91P24.6    9.097300e-02   1.682673e-01
SLC33A1         2.695835e-12   2.377746e-11
SNORA61         5.077534e-03   1.383944e-02
...                      ...            ...
RP11-75I2.3    1.178788e-194  3.833025e-192
SLC25A24        1.047442e-13   1.026915e-12
BTN2A2          3.096184e-01   4.489859e-01
RP11-101E3.5    6.111834e-01   7.290599e-01
RP11-91I8.3     3.563634e-05   1.477087e-04

[19510 rows x 6 columns]

# Extract results
results_df = stat_res.results_df
results_df

	baseMean	log2FoldChange	lfcSE	stat	pvalue	padj
RP11-347I19.8	88.877997	-0.207128	0.252585	-0.820033	4.121975e-01	5.540839e-01
TMEM170B	103.807801	-0.276961	0.210597	-1.315124	1.884683e-01	3.054254e-01
RP11-91P24.6	185.514929	-0.305849	0.180945	-1.690287	9.097300e-02	1.682673e-01
SLC33A1	2559.269047	0.595912	0.085219	6.992732	2.695835e-12	2.377746e-11
SNORA61	66.168502	0.746768	0.266506	2.802073	5.077534e-03	1.383944e-02
...	...	...	...	...	...	...
RP11-75I2.3	771.828248	3.812419	0.128093	29.762958	1.178788e-194	3.833025e-192
SLC25A24	3525.523888	0.651017	0.087564	7.434777	1.047442e-13	1.026915e-12
BTN2A2	674.018191	-0.107905	0.106204	-1.016023	3.096184e-01	4.489859e-01
RP11-101E3.5	194.084339	0.092515	0.181979	0.508385	6.111834e-01	7.290599e-01
RP11-91I8.3	10.761886	-3.804540	0.920285	-4.134090	3.563634e-05	1.477087e-04

19510 rows × 6 columns

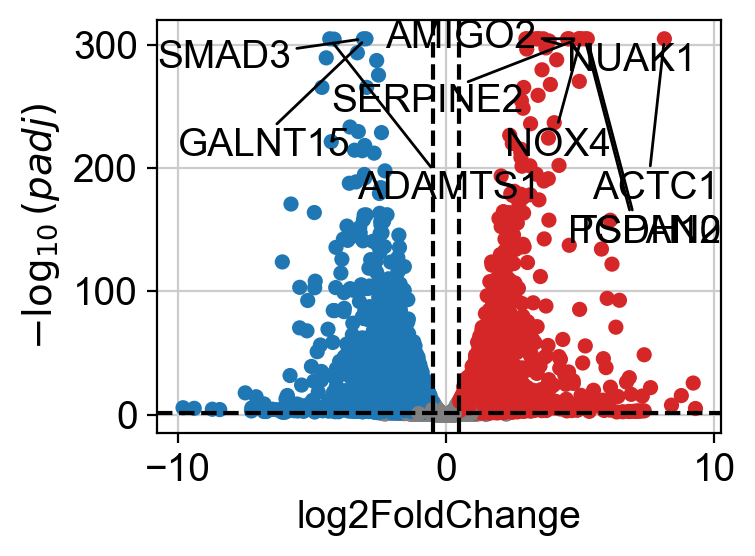

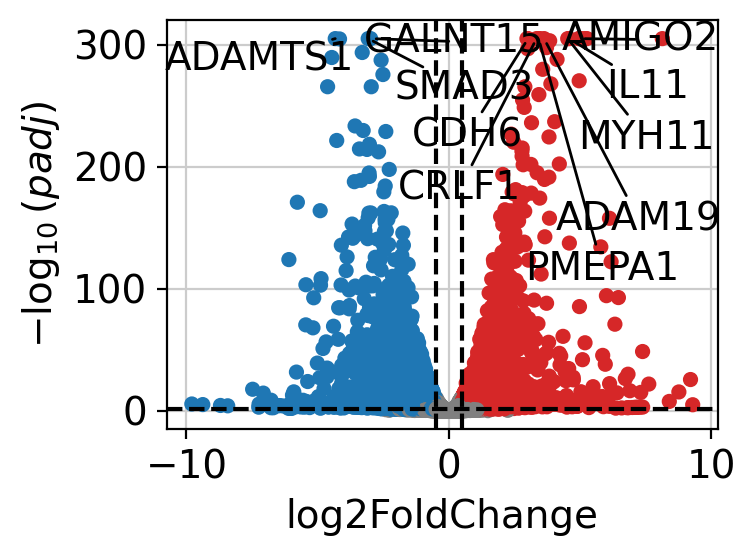

The results can be visualized using a volcano plot.

dc.pl.volcano(
    data=results_df,
    x="log2FoldChange",
    y="padj",
    top=10,
)

After performing DEA, we can use the resulting gene-level statistics for enrichment analysis. While any statistic can be used, we recommend using t-values rather than log2FCs, as t-values account for the significance of the change. We will transform the obtained t-values, stored in the column stat, into a wide matrix format so that it can be used with decoupler.

data = results_df[["stat"]].T.rename(index={"stat": "treatment.vs.control"})
data

	RP11-347I19.8	TMEM170B	RP11-91P24.6	SLC33A1	SNORA61	THAP9-AS1	LIX1L	TTC8	WBSCR22	LPHN2	...	STARD4-AS1	ZNF845	NIPSNAP3B	ARL6IP5	MATN1-AS1	RP11-75I2.3	SLC25A24	BTN2A2	RP11-101E3.5	RP11-91I8.3
treatment.vs.control	-0.820033	-1.315124	-1.690287	6.992732	2.802073	1.531631	2.164968	-0.579993	-0.945967	-14.354905	...	14.489549	0.567183	-1.882506	-8.428726	-1.739315	29.762958	7.434777	-1.016023	0.508385	-4.13409

1 rows × 19510 columns

Enrichment analysis

Enrichment analysis tests whether a specific set of omics features is “overrepresented” or “coordinated” in the measured data compared to a background distribution. These sets are predefined based on existing biological knowledge and may vary depending on the omics technology used.

Enrichment analysis requires the use of an enrichment method, and several options are available. In the original manuscript of decoupler [BiMVSB+22], we benchmarked multiple methods and found that the univariate linear model (ulm) outperformed the others. Therefore, we will use ulm in this vignette.

The scores from decoupler.mt.ulm should be interpreted such that larger magnitudes indicate greater significance, while the sign reflects whether the features in the set are overrepresented (positive) or underrepresented (negative) compared to the background.

Transcription factor scoring from gene regulatory networks

Transcription factors (TFs) are genes that, once translated into proteins, bind to DNA and regulate the expression of other genes by either promoting or inhibiting their transcription. Gene Regulatory Networks (GRNs) capture these TF-gene interactions and can be constructed from prior knowledge or inferred from omics data. The fundamental unit of a GRN is a TF and its associated target genes, collectively known as a regulon. Each regulon functions as a gene set in enrichment analysis.

Although TFs are measured in transcriptomic data, their transcript levels often do not reflect their actual activity in a given cell. Instead, scoring TFs through enrichment analysis based on the expression of their target genes provides a more accurate representation of their regulatory activity [BiMWMullerD+23].

CollecTRI network

CollecTRI is a comprehensive resource containing a curated collection of TFs and their transcriptional targets compiled from 12 different resources [MullerDTV+23]. This collection provides an increased coverage of transcription factors and a superior performance in identifying perturbed TFs compared to other literature based GRNs such as DoRothEA [GAHI+19]. Similar to DoRothEA, interactions are weighted by their mode of regulation (activation or inhibition).

In this tutorial we will use the human version but other organisms are available. We can use decoupler to retrieve it from the OmniPath server.

Note

In this tutorial we use the network CollecTRI, but we could use any other GRN coming from an inference method such as CellOracle, pySCENIC or SCENIC+.

collectri = dc.op.collectri(organism="human")
collectri

	source	target	weight	resources	references	sign_decision
0	MYC	TERT	1.0	DoRothEA-A;ExTRI;HTRI;NTNU.Curated;Pavlidis202...	10022128;10491298;10606235;10637317;10723141;1...	PMID
1	SPI1	BGLAP	1.0	ExTRI	10022617	default activation
2	SMAD3	JUN	1.0	ExTRI;NTNU.Curated;TFactS;TRRUST	10022869;12374795	PMID
3	SMAD4	JUN	1.0	ExTRI;NTNU.Curated;TFactS;TRRUST	10022869;12374795	PMID
4	STAT5A	IL2	1.0	ExTRI	10022878;11435608;17182565;17911616;22854263;2...	default activation
...	...	...	...	...	...	...
42985	NFKB	hsa-miR-143-3p	1.0	ExTRI	19472311	default activation
42986	AP1	hsa-miR-206	1.0	ExTRI;GEREDB;NTNU.Curated	19721712	PMID
42987	NFKB	hsa-miR-21	1.0	ExTRI	20813833;22387281	default activation
42988	NFKB	hsa-miR-224-5p	1.0	ExTRI	23474441;23988648	default activation
42989	AP1	hsa-miR-144-3p	1.0	ExTRI	23546882	default activation

42990 rows × 6 columns

Scoring

We can easily compute TF scores by running the ulm method.

# Run
tf_acts, tf_padj = dc.mt.ulm(data=data, net=collectri)

# Filter by sign padj
msk = (tf_padj.T < 0.05).iloc[:, 0]
tf_acts = tf_acts.loc[:, msk]

tf_acts

	APEX1	ARID1A	ARID4B	ARNT	ASXL1	ATF6	BARX2	BCL11A	BCL11B	BMAL2	...	TBX10	TCF21	TFAP2C	TP53	VEZF1	WWTR1	ZBTB33	ZEB2	ZNF804A	ZXDC
treatment.vs.control	-2.65798	-3.916049	-2.80643	3.17109	3.74431	2.705803	5.355843	2.647933	-4.201797	3.866924	...	-3.702477	6.159993	-2.578059	-3.570739	4.206326	-3.966869	3.235394	5.787616	3.362941	-2.732602

1 rows × 142 columns

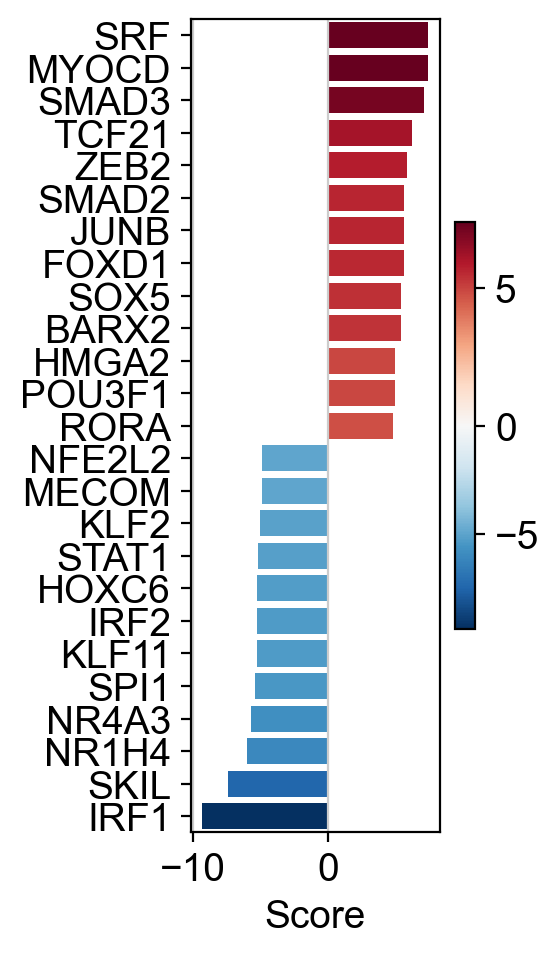

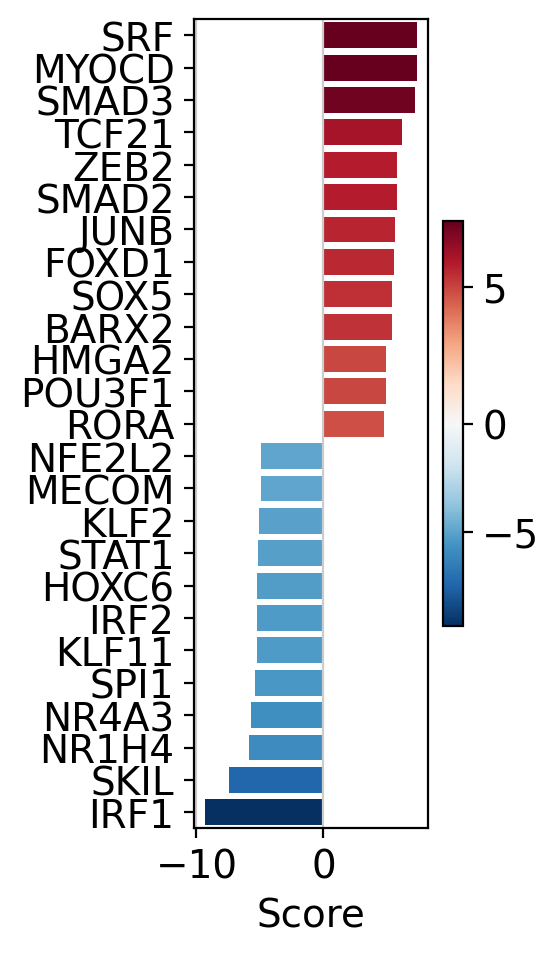

The obtained scores for the most active and inactive TFs can be visualized as follows.

dc.pl.barplot(data=tf_acts, name="treatment.vs.control", top=25, figsize=(3, 5))

SRF, MYOCD and SMAD3 appear to be the most activated TFs in this treatment, while IRF1, SKIL and NR1H4 appear to be inactivated.

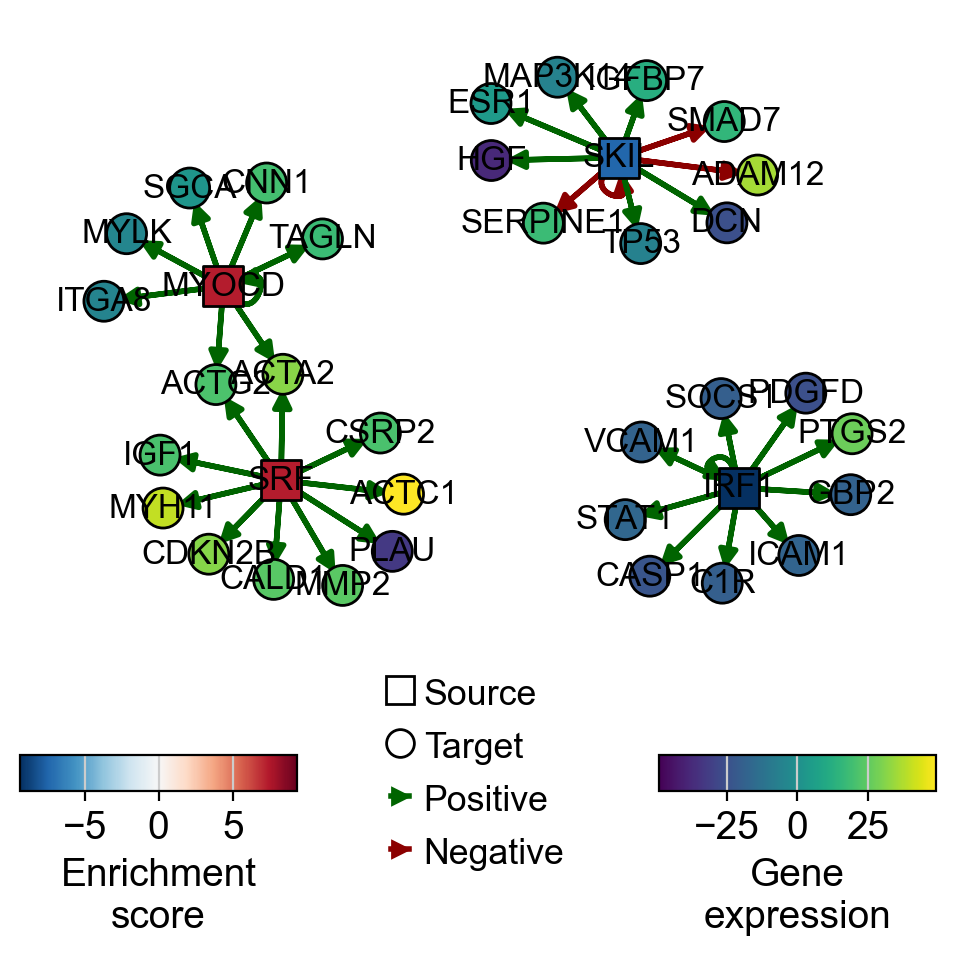

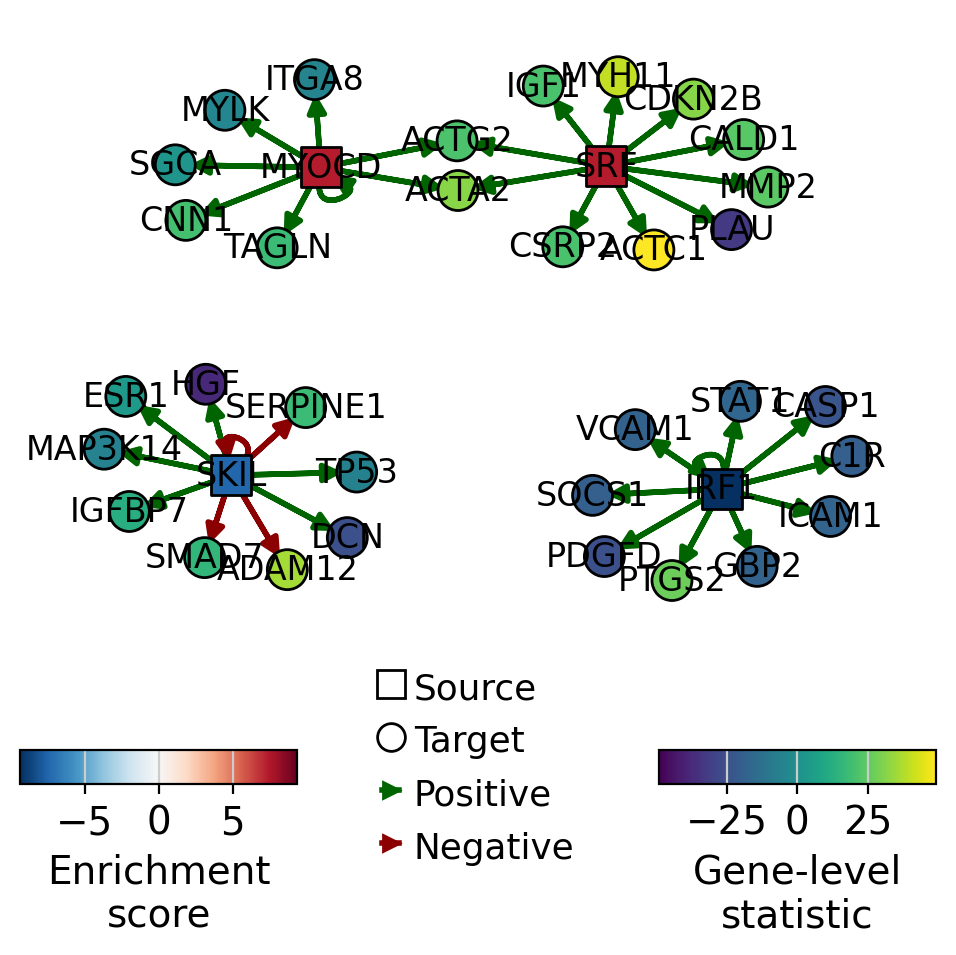

A network of selected TFs (top and bottom ranked by activity) can also be visualized, with nodes colored by TF activity and target gene expression.

dc.pl.network(
    net=collectri,
    data=data,
    score=tf_acts,
    sources=["SRF", "MYOCD", "IRF1", "SKIL"],
    targets=10,
    figsize=(5, 5),
    vcenter=True,
    by_abs=True,
    size_node=10,
)

SRF appears to be active in treated cells, as its positively regulated targets are upregulated.

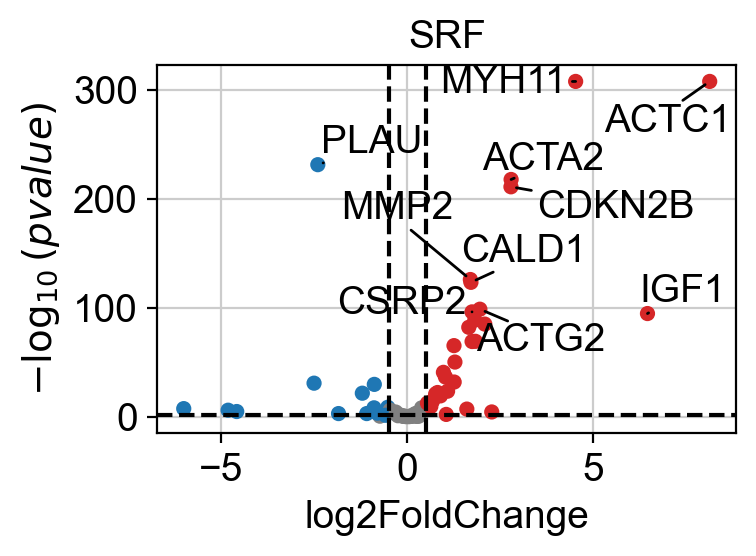

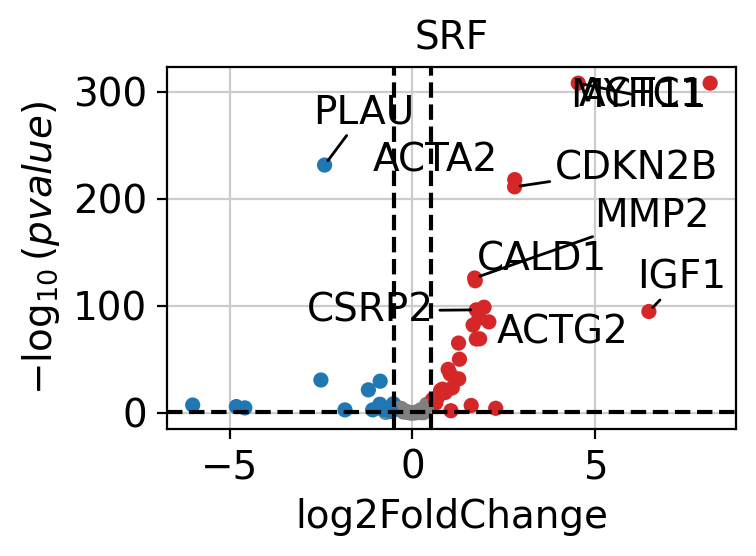

If needed, we can also look at a volcano plot of the target genes.

dc.pl.volcano(
    data=results_df,
    x="log2FoldChange",
    y="pvalue",
    net=collectri,
    name="SRF",
    top=10,
)

Pathway Scoring

The same approach used for TF scoring can also be applied to pathways. Numerous databases provide curated pathway gene sets, with one of the most well-known being MSigDB, which includes several collections [LSP+11]. These and many other resources can be accessed using the function decoupler.op.resource(). To view the list of available databases, use decoupler.op.show_resources().

PROGENy Pathway Genes

PROGENy is a comprehensive resource that provides a curated collection of pathways and their target genes, along with weights for each interaction [SKK+18].

Below is a brief description of each pathway:

• Androgen: involved in the growth and development of the male reproductive organs

• EGFR: regulates growth, survival, migration, apoptosis, proliferation, and differentiation in mammalian cells

• Estrogen: promotes the growth and development of the female reproductive organs

• Hypoxia: promotes angiogenesis and metabolic reprogramming when O2 levels are low

• JAK-STAT: involved in immunity, cell division, cell death, and tumor formation

• MAPK: integrates external signals and promotes cell growth and proliferation

• NFkB: regulates immune response, cytokine production and cell survival

• p53: regulates cell cycle, apoptosis, DNA repair and tumor suppression

• PI3K: promotes growth and proliferation

• TGFb: involved in development, homeostasis, and repair of most tissues

• TNFa: mediates haematopoiesis, immune surveillance, tumour regression and protection from infection

• Trail: induces apoptosis

• VEGF: mediates angiogenesis, vascular permeability, and cell migration

• WNT: regulates organ morphogenesis during development and tissue repair

This is how to access to it.

progeny = dc.op.progeny(organism="human")
progeny

	source	target	weight	padj
0	Androgen	TMPRSS2	11.490631	2.384806e-47
1	Androgen	NKX3-1	10.622551	2.205102e-44
2	Androgen	MBOAT2	10.472733	4.632376e-44
3	Androgen	KLK2	10.176186	1.944410e-40
4	Androgen	SARG	11.386852	2.790210e-40
...	...	...	...	...
62456	p53	ENPP2	2.771405	4.993215e-02
62457	p53	ARRDC4	3.494328	4.996747e-02
62458	p53	MYO1B	-1.148057	4.997905e-02
62459	p53	CTSC	-1.784693	4.998864e-02
62460	p53	NAA50	-1.435013	4.998884e-02

62461 rows × 4 columns

Scoring

We can easily compute pathway scores by running the ulm method.

# Run
pw_acts, pw_padj = dc.mt.ulm(data=data, net=progeny)

# Filter by sign padj
msk = (pw_padj.T < 0.05).iloc[:, 0]
pw_acts = pw_acts.loc[:, msk]

pw_acts

	Androgen	EGFR	Estrogen	Hypoxia	JAK-STAT	MAPK	NFkB	PI3K	TGFb	TNFa	VEGF	p53
treatment.vs.control	4.767318	17.24881	10.995306	5.69203	-14.29565	25.596424	-10.146465	24.612571	59.351703	-9.079214	11.461921	-12.578889

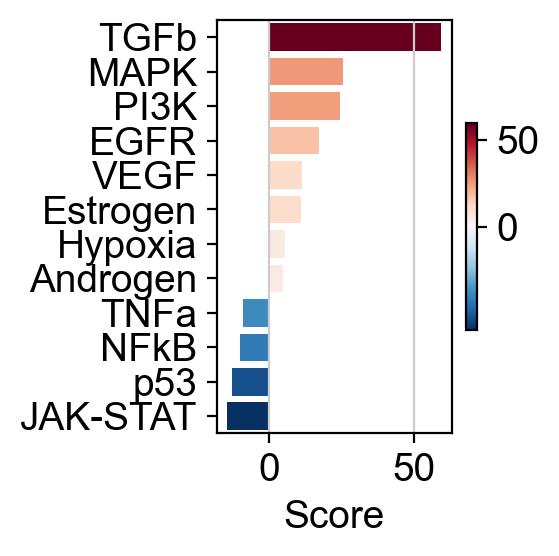

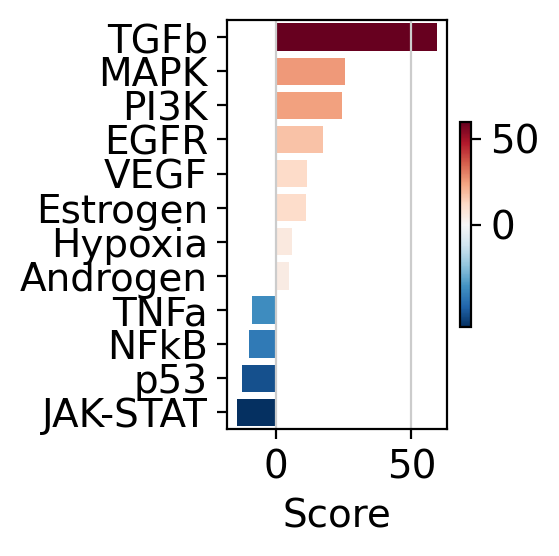

The obtained scores for the most active and inactive pathways can be visualized as follows

dc.pl.barplot(data=pw_acts, name="treatment.vs.control", top=25, figsize=(3, 3))

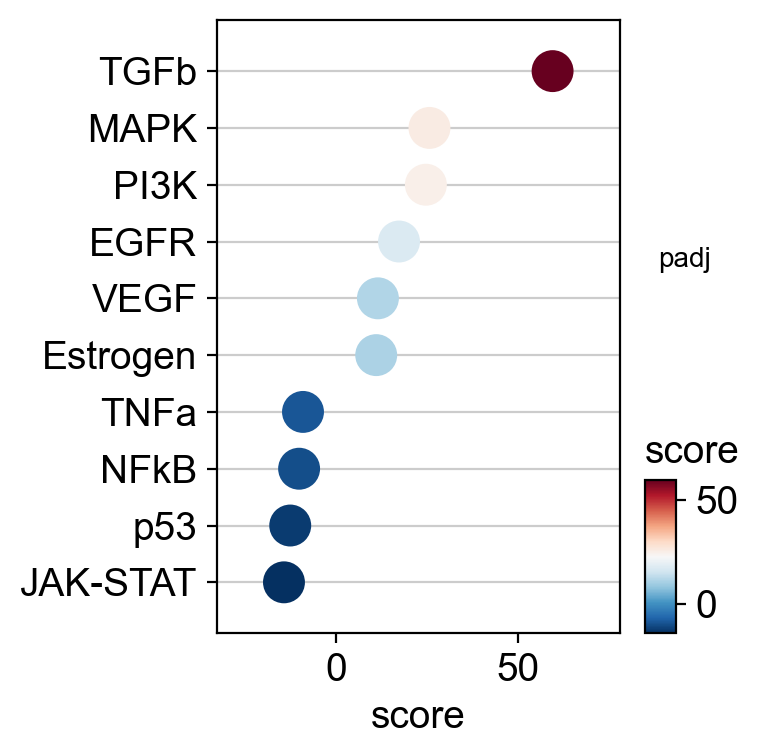

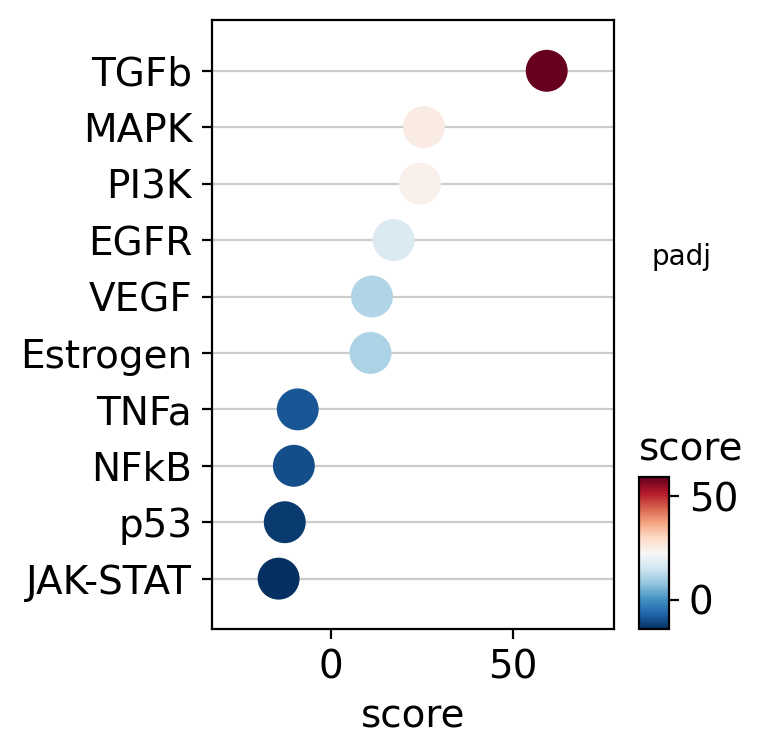

This can also be visualized using a dot plot.

# Tranform to df
df = pw_acts.melt(value_name="score").merge(
    pw_padj.melt(value_name="padj")
    .assign(padj=lambda x: x["padj"].clip(2.22e-16, 1))
    .assign(padj=lambda x: np.log10(x["padj"]))
)
dc.pl.dotplot(df=df, x="score", y="variable", s="padj", c="score", scale=0.15, figsize=(4, 4))

As expected, treatment with the cytokine TGF-β results in increased activity of the TGF-β pathway.

Conversely, the treatment appears to reduce the activity of other pathways, such as JAK-STAT and p53.

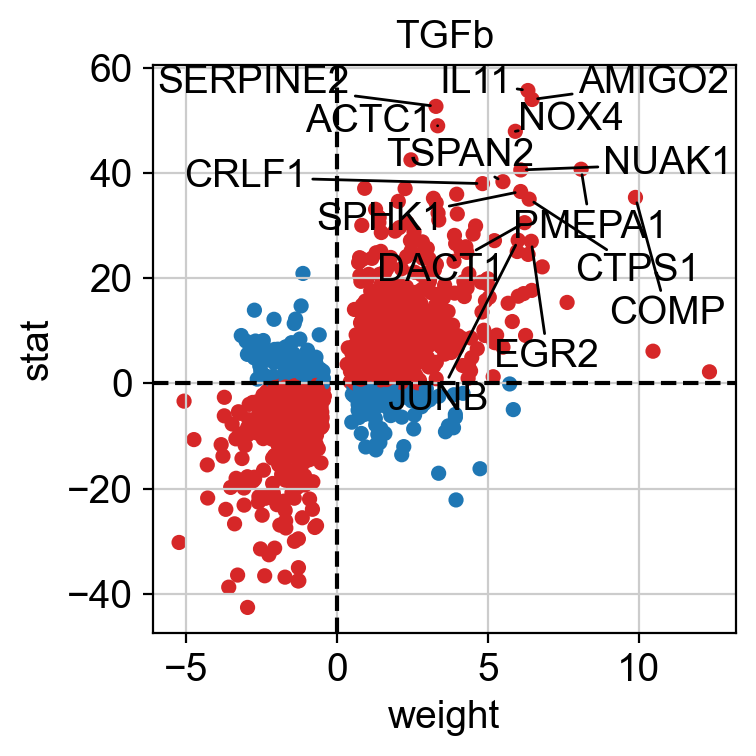

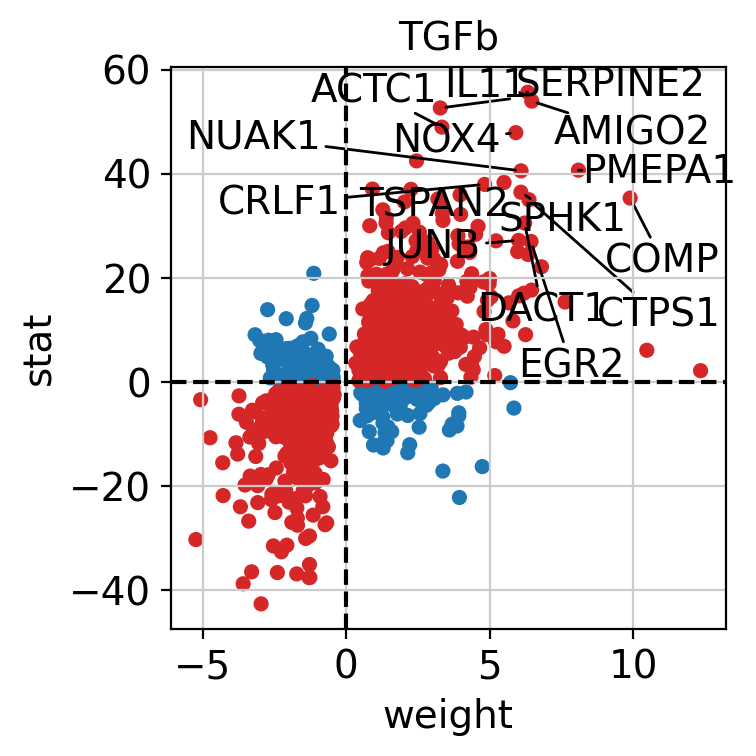

The targets of the TGF-β pathway can be visualized in a scatter plot.

dc.pl.source_targets(data=results_df, x="weight", y="stat", net=progeny, name="TGFb", top=15, figsize=(4, 4))

The observed activation of the TGF-β pathway is driven by the fact that most of its positively weighted target genes have positive t-values (first quadrant), while most of the negatively weighted targets have negative t-values (third quadrant).

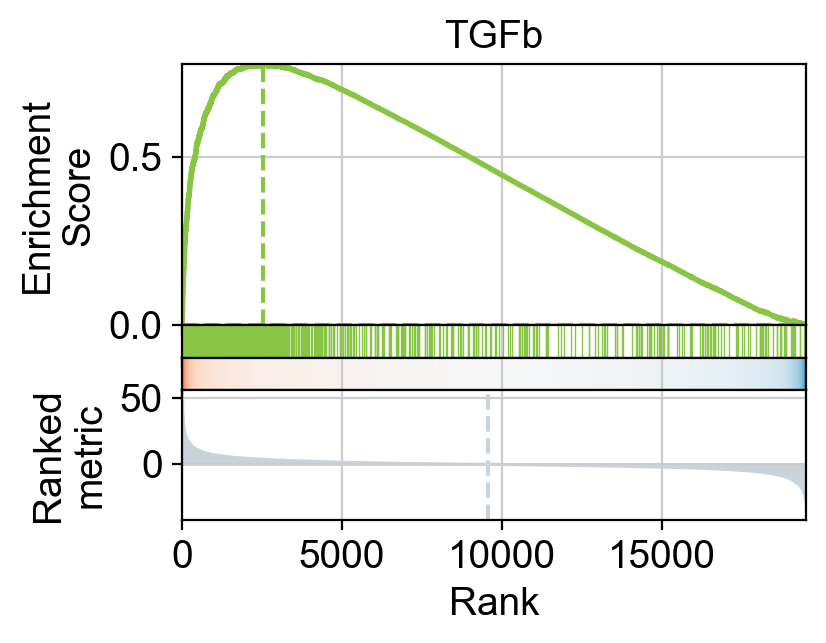

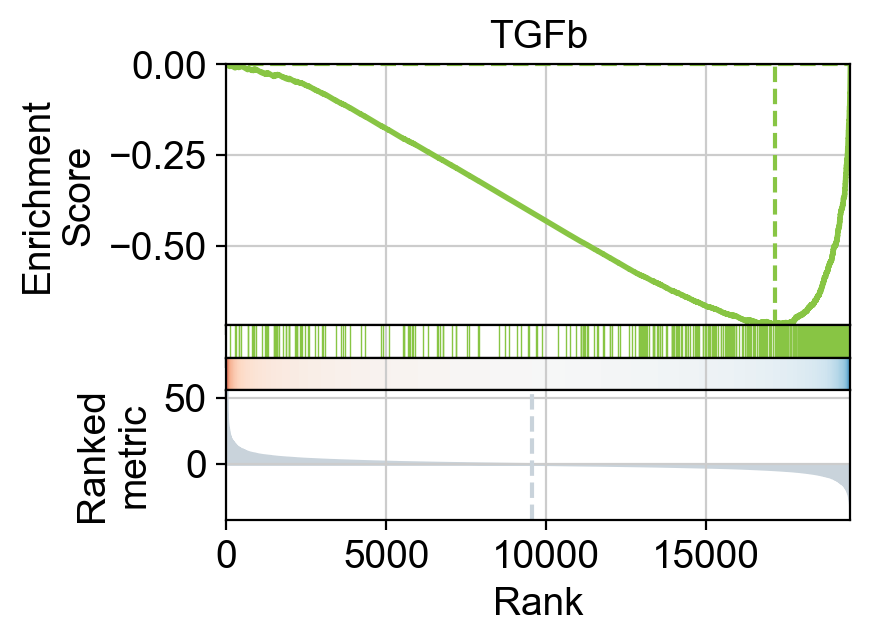

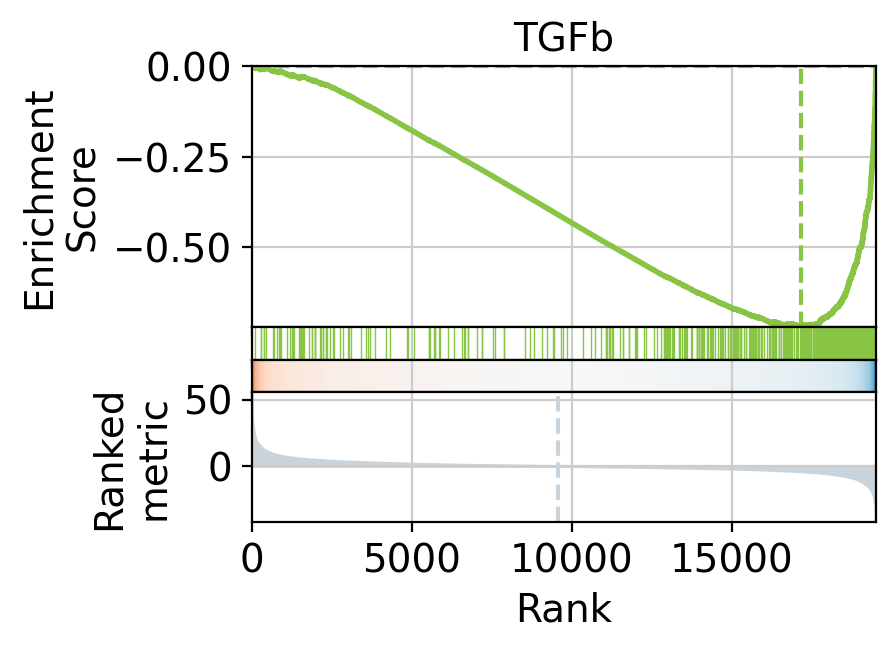

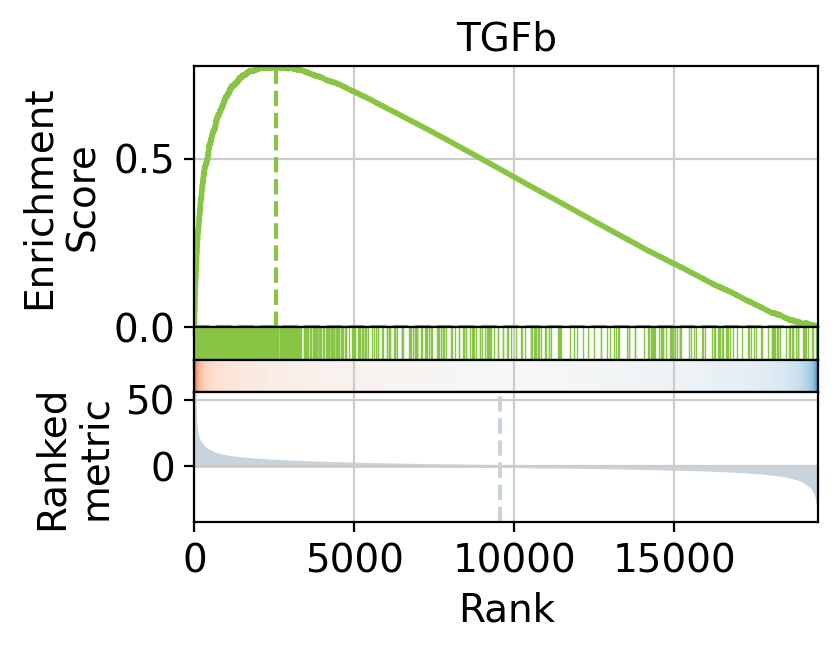

We can also visualize the targets of TGF-β as a leading edge plot. Because PROGENy includes both positive and negative target genes, the leading edge plot can be separated into positive and negative components.

_, pos_le = dc.pl.leading_edge(
    results_df,
    stat="stat",
    net=progeny[progeny["weight"] > 0],
    name="TGFb",
)
print("(+) leading edge:", pos_le[:5])
_, neg_le = dc.pl.leading_edge(
    results_df,
    stat="stat",
    net=progeny[progeny["weight"] < 0],
    name="TGFb",
)
print("(-) leading edge:", neg_le[:5])

(+) leading edge: ['IL11' 'AMIGO2' 'SERPINE2' 'ACTC1' 'NOX4']
(-) leading edge: ['SMAD3' 'ADAMTS1' 'GALNT15' 'HGF' 'NID2']

Hallmark gene sets

Hallmark gene sets are curated collections of genes that represent specific, well-defined biological states or processes. They are part of MSigDB and were developed to reduce redundancy and improve interpretability compared to older, more overlapping gene set collections [LSP+11].

A total of 50 gene sets are provided, designed to be non-redundant, concise, and biologically coherent.

This is how to access them.

hallmark = dc.op.hallmark(organism="human")
hallmark

	source	target
0	IL2_STAT5_SIGNALING	MAFF
1	COAGULATION	MAFF
2	HYPOXIA	MAFF
3	TNFA_SIGNALING_VIA_NFKB	MAFF
4	COMPLEMENT	MAFF
...	...	...
7313	PANCREAS_BETA_CELLS	STXBP1
7314	PANCREAS_BETA_CELLS	ELP4
7315	PANCREAS_BETA_CELLS	GCG
7316	PANCREAS_BETA_CELLS	PCSK2
7317	PANCREAS_BETA_CELLS	PAX6

7318 rows × 2 columns

Scoring

Pathway scores can be easily computed by running the ulm method.

# Run
hm_acts, hm_padj = dc.mt.ulm(data=data, net=hallmark)

# Filter by sign padj
msk = (hm_padj.T < 0.05).iloc[:, 0]
hm_acts = hm_acts.loc[:, msk]

hm_acts

	ADIPOGENESIS	ALLOGRAFT_REJECTION	APICAL_SURFACE	APOPTOSIS	BILE_ACID_METABOLISM	COMPLEMENT	E2F_TARGETS	EPITHELIAL_MESENCHYMAL_TRANSITION	FATTY_ACID_METABOLISM	G2M_CHECKPOINT	...	MYC_TARGETS_V1	MYC_TARGETS_V2	MYOGENESIS	P53_PATHWAY	PROTEIN_SECRETION	REACTIVE_OXYGEN_SPECIES_PATHWAY	TGF_BETA_SIGNALING	TNFA_SIGNALING_VIA_NFKB	UNFOLDED_PROTEIN_RESPONSE	XENOBIOTIC_METABOLISM
treatment.vs.control	-2.246252	-3.418481	-2.707689	-3.981952	-2.344713	-4.22352	8.114239	13.570338	-2.431708	8.3056	...	5.278148	2.516328	6.550469	-3.530944	2.502391	-6.564499	5.379312	-3.502281	4.943592	-4.416553

1 rows × 30 columns

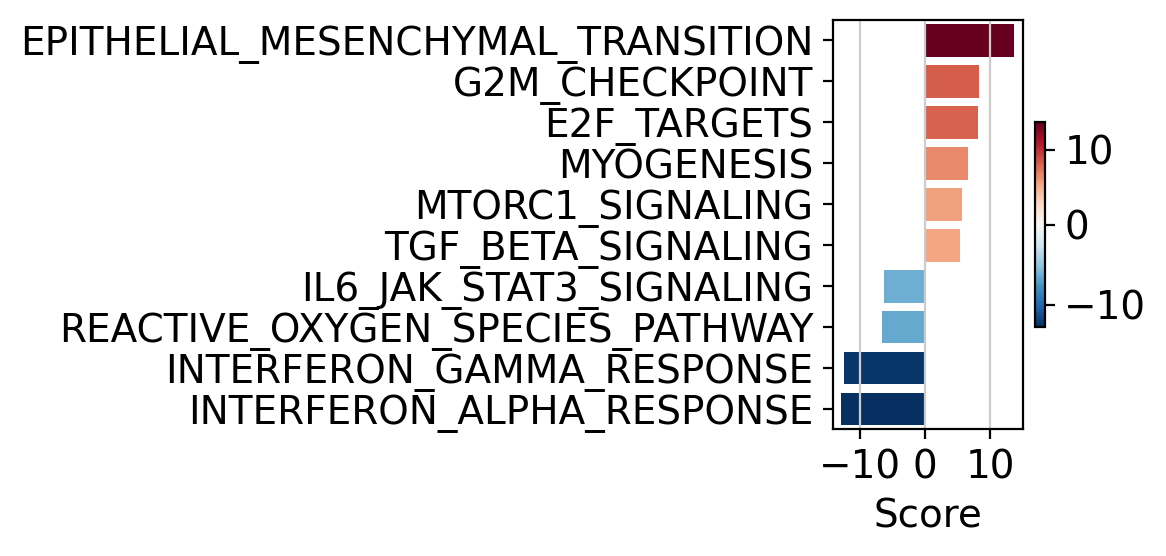

The obtained scores for the most active and inactive pathways can be visualized as follows.

dc.pl.barplot(data=hm_acts, top=10, name="treatment.vs.control", figsize=(6, 3))

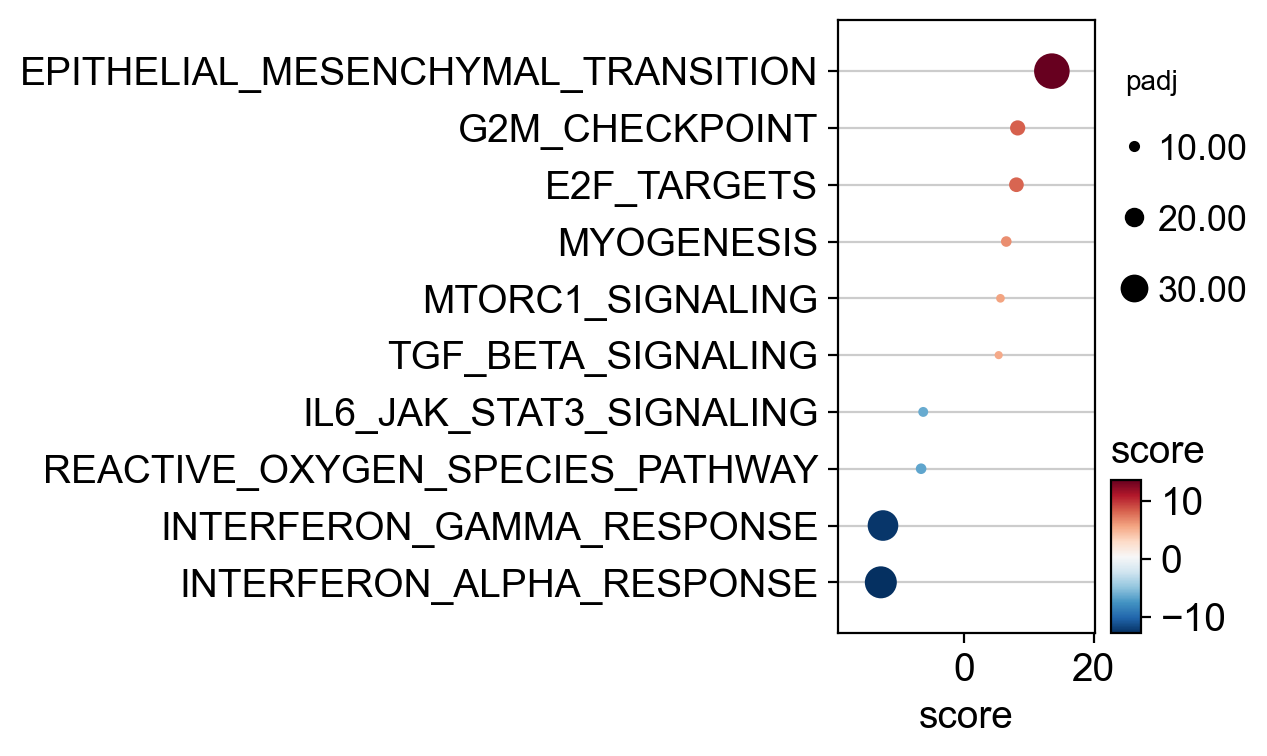

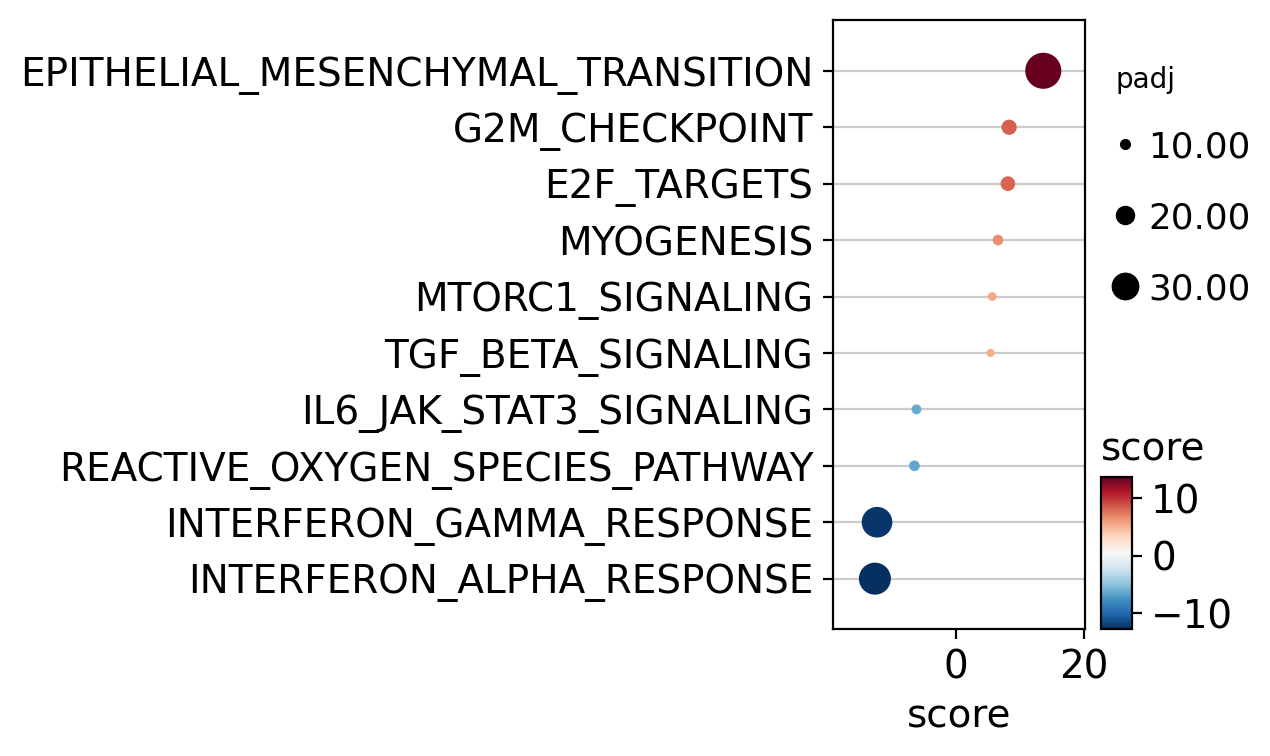

Or alternatively like this.

# Tranform to df
df = hm_acts.melt(value_name="score").merge(
    hm_padj.melt(value_name="pvalue")
    .assign(padj=lambda x: x["pvalue"].clip(2.22e-16, 1))
    .assign(padj=lambda x: np.log10(x["pvalue"]))
)
dc.pl.dotplot(df=df, x="score", y="variable", s="padj", c="score", top=10, scale=0.05, figsize=(6.5, 4))

Hallmark gene sets identify TGF_BETA_SIGNALING as a positively activated significant pathway but not as significant as EPITHELIAL_MESENCHYMAL_TRANSITION.

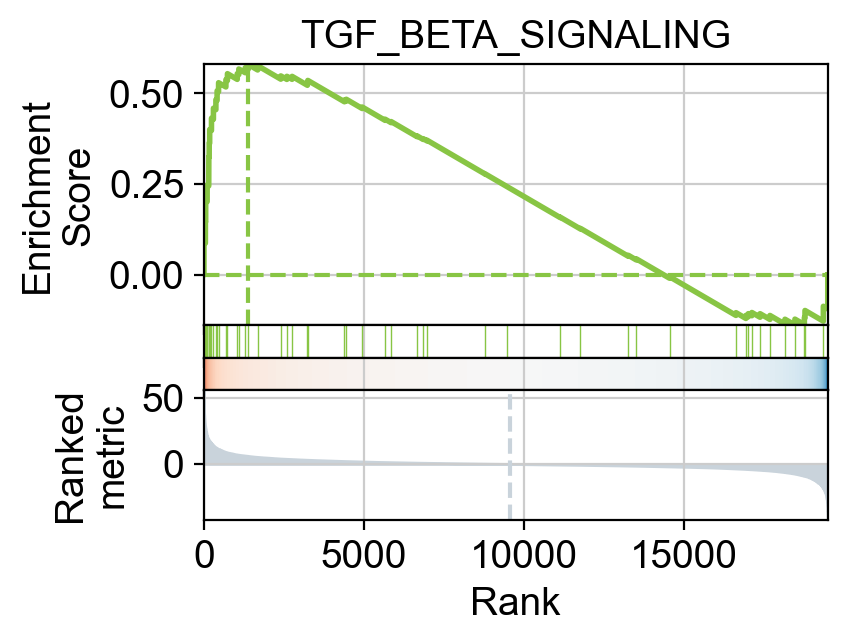

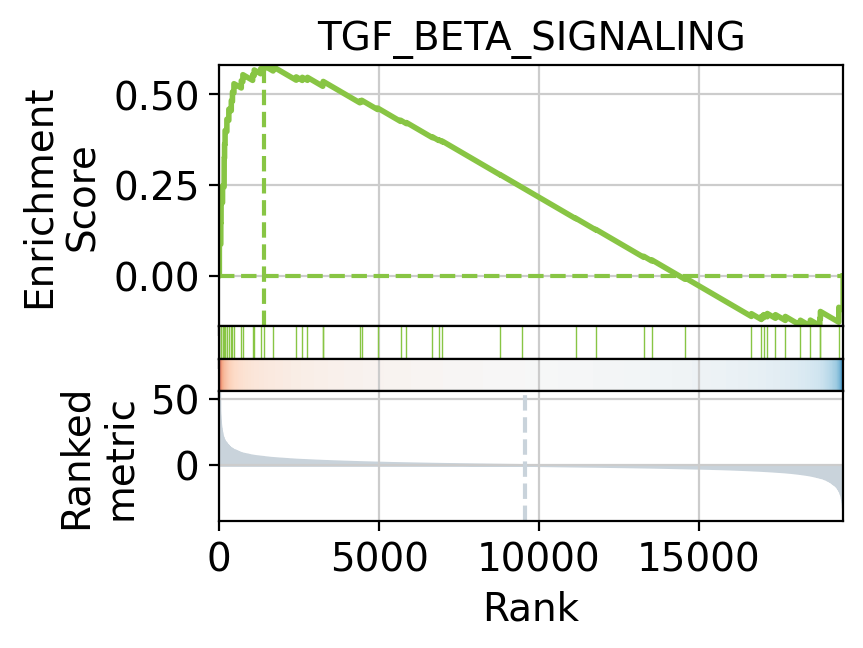

Targets of the TGF_BETA_SIGNALING can be visualized as a leading edge plot.

_, le = dc.pl.leading_edge(
    results_df,
    stat="stat",
    net=hallmark,
    name="TGF_BETA_SIGNALING",
)
print("leading edge:", le[:5])

leading edge: ['PMEPA1' 'JUNB' 'SKIL' 'LTBP2' 'KLF10']
